7712/7724Bürstenmotor /圓型鐵殼

用途: Elektrowerkzeuge 、Nähmaschinen



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
7712-10215-R 100-230 150V CONSTANT 4700 0.07 4058 0.20 477 46.76 19.88 69 1.12 3790 312.75
7712-1690-R 60-150 100V CONSTANT 8000 0.14 6845 0.52 532 52.16 37.40 73 3.39 4089 400.88
7724-09125-R 100-230 110V CONSTANT 3000 0.06 2304 0.16 352 34.51 8.33 48 0.48 1369 134.22
7724-2232-R 50-120 100V CONSTANT 12300 0.27 8643 2.86 1510 148.04 134.03 47 7.50 5433 532.65
馬達的出軸長度及性能參數,EMC 對策可依客人要求做調整,詳情可詢問相關業務人員。

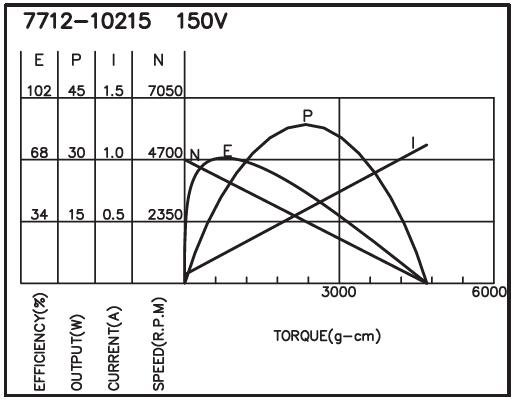

  • torque_151599352575.jpg

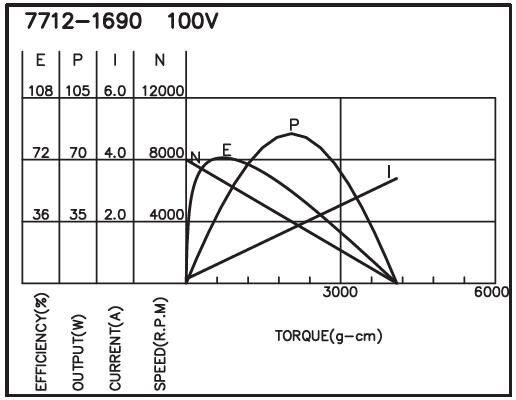

  • torque_151599352579.jpg

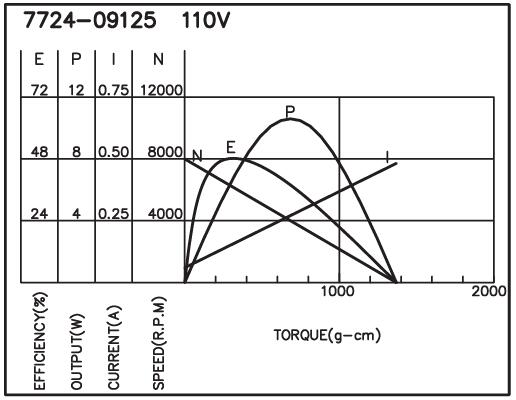

  • torque_151599352568.jpg

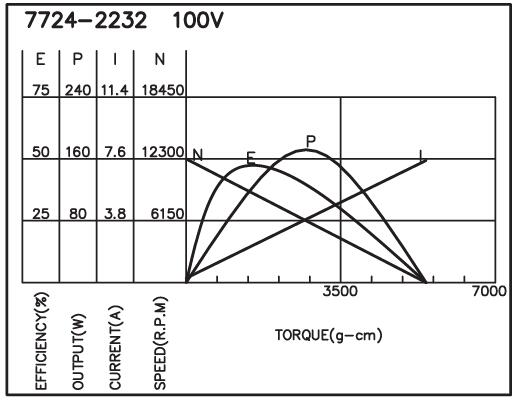

  • torque_151599352510.jpg
