H5NBürstenmotor /圓型鐵殼
用途： Elektrowerkzeuge 、Pumpen 、Staubsauger 、Elektrische Bohrmaschine
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

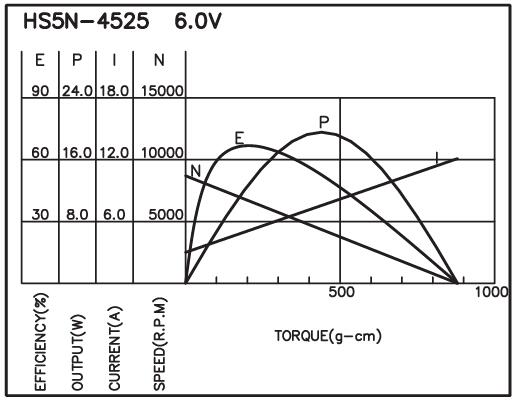

| HS5N-4525 | 6.0-12.0 | 6.0V CONSTANT | 8700 | 1.00 | 6800 | 3.30 | 190 | 18.63 | 13.25 | 66 | 12.10 | 880 | 86.27 |

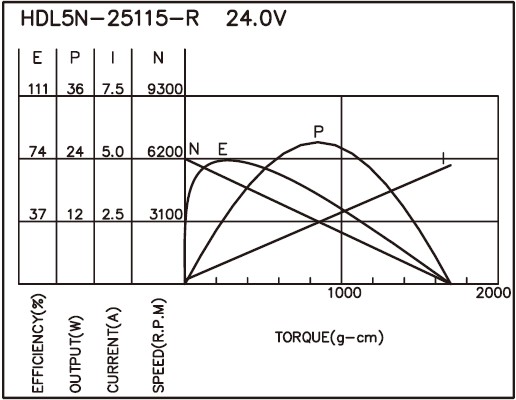

| HDL5N-25115-R | 12.0-24.0 | 24.0V CONSTANT | 6200 | 0.16 | 5405 | 0.85 | 263 | 25.78 | 14.60 | 74 | 4.74 | 1698 | 165.59 |

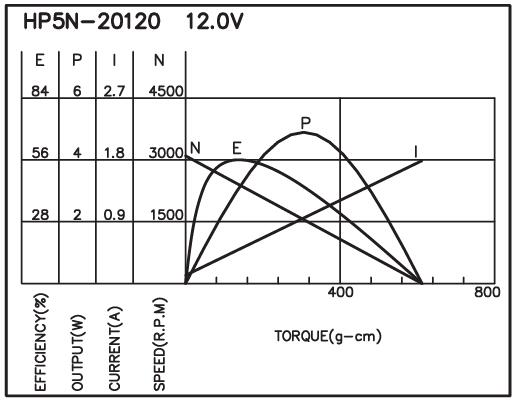

| HP5N-20120 | 12.0-24.0 | 12.0V CONSTANT | 3100 | 0.12 | 2300 | 0.47 | 129 | 12.65 | 3.17 | 56 | 1.79 | 612 | 60.00 |

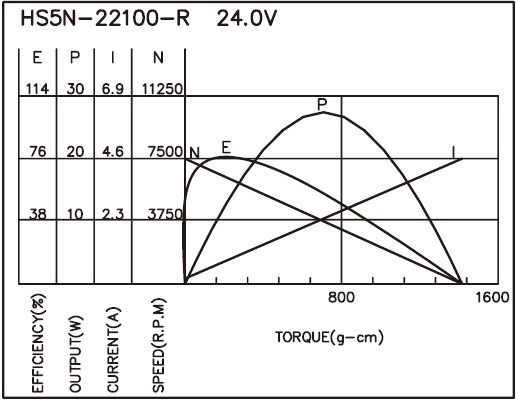

| HS5N-22100-R | 12.0-24.0 | 24.0V CONSTANT | 7500 | 0.20 | 6693 | 0.56 | 148 | 14.51 | 10.22 | 77 | 4.63 | 1417 | 138.92 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
