K5NBürstenmotor /圓型鐵殼
用途： Pumpen 、Verkaufsautomaten 、Haartrockner 、Fan
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

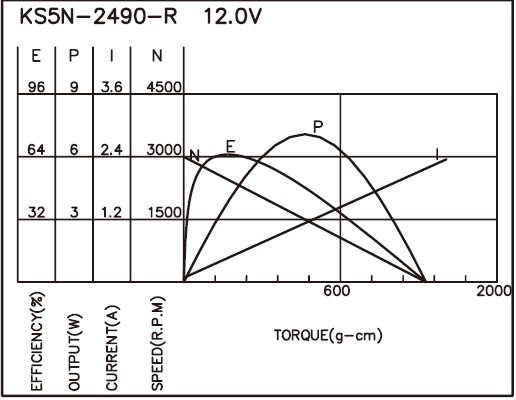

| KS5N-2490-R | 6.0-24.0 | 12.0V CONSTANT | 3000 | 0.18 | 2446 | 0.51 | 160 | 15.69 | 4.01 | 65 | 2.53 | 929 | 91.08 |

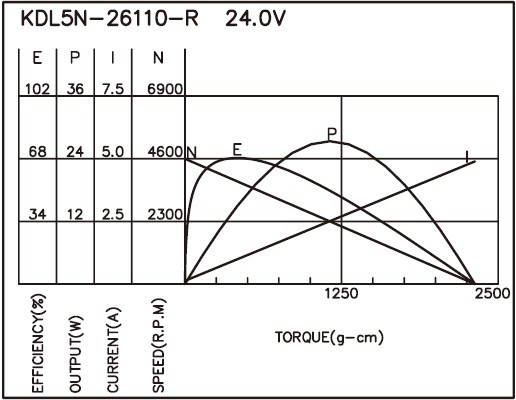

| KDL5N-26110-R | 18.0-36.0 | 24.0V CONSTANT | 4600 | 0.13 | 3897 | 0.91 | 358 | 15.29 | 14.33 | 69 | 4.89 | 2314 | 226.86 |

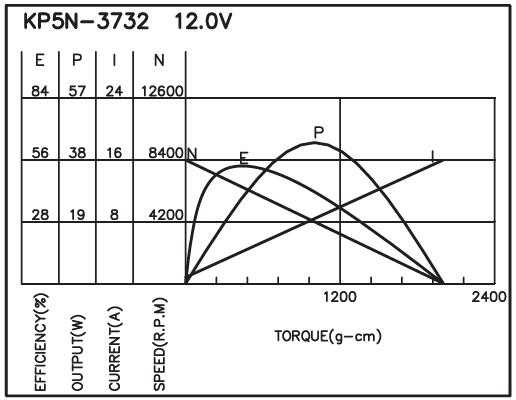

| KP5N-3732-R | 6.0-20.0 | 12.0V CONSTANT | 8400 | 0.80 | 6262 | 4.28 | 435 | 42.55 | 27.91 | 55 | 16.11 | 2002 | 196.27 |

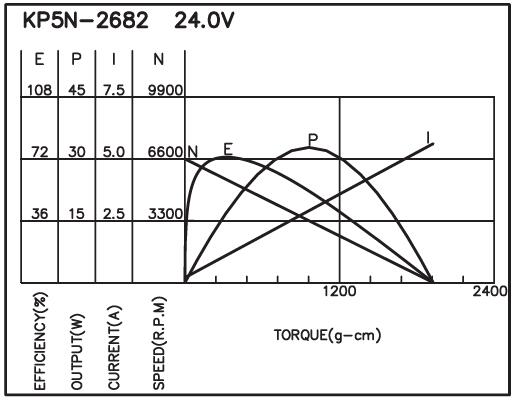

| KP5N-2682-R | 12.0-36.0 | 24.0V CONSTANT | 6600 | 0.20 | 5790 | 0.83 | 242 | 23.73 | 14.37 | 72 | 5.62 | 1927 | 188.92 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
